FiiO K11 R2R DAC Review – Resistors, Reason, and a Dash of Magic

Introduction

When FiiO announced the K11 R2R – a desktop DAC and headphone amp sporting a resistor ladder DAC architecture – my audiophile eyebrows climbed a few notches. R2R DACs (short for resistor-to-resistor ladder converters) have long been the darlings of high-end digital audio, known for their analog-like presentation and often hefty price tags. Seeing one materialize in a sub-$200 unit felt almost paradoxical, like spotting a unicorn grazing in the budget pasture. As a long-time reviewer (and admitted DAC nerd), I was equal parts curious and skeptical: is the K11 R2R a genuine gift to budget-conscious enthusiasts, or just a marketing gimmick wrapped in audiophile buzzwords?

In this review, I’ll dive deep into the FiiO K11 R2R, focusing on its performance as a headphone DAC/Amp while also examining its line-out and preamp capabilities. We’ll explore the implications of its R2R architecture in the affordable segment – does this design choice deliver real sonic benefits, or is it more about bragging rights? And importantly, how does the K11 R2R stack up against other contenders in the ~$150–$200 range (Topping, SMSL, Schiit and the like)? Strap in for a detailed ride, up and down the ladder.

Design & Build Quality

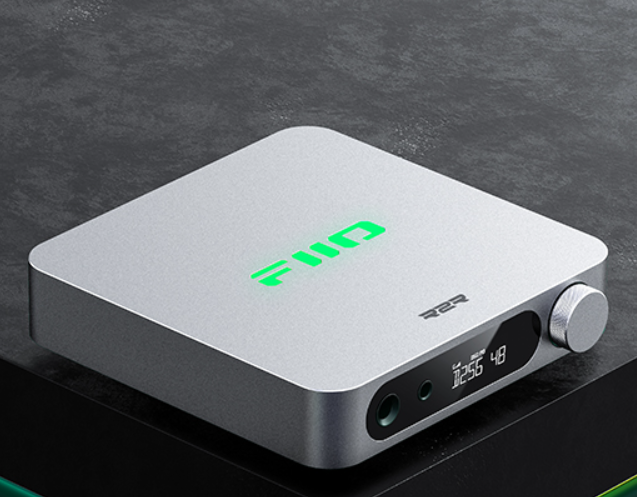

Pulling the K11 R2R out of its box, I was immediately struck by its compact, handsome form. FiiO has opted for a clean, modern aesthetic that wouldn’t look out of place next to a Mac Mini or a high-end music streamer. The unit’s chassis is crafted from aluminum with an anodized finish, giving it a premium feel that belies its affordable price. At roughly 5 inches square and a little over an inch tall, it takes up minimal desk space – a boon for those of us with crowded workspaces or minimalist setups. Despite its small stature, the K11 R2R has some weight (around 400+ grams) which, combined with a grippy silicone bottom pad, keeps it firmly planted on the desk even when fiddling with cables or the volume knob.

The FiiO K11 R2R’s front panel keeps things straightforward yet fully featured. A crisp monochrome display shows the input, sample rate, gain setting, and volume level at a glance. To the left, dual headphone outputs – a 6.35mm (1/4”) jack and a 4.4mm balanced jack – invite you to plug in everything from sensitive IEMs to power-hungry full-size cans. On the right, the single rotary knob handles power, volume, and menu navigation with satisfying clicks, doubling as a button when pressed.

The overall build quality is excellent. The knob turns smoothly with tactile steps, and the unit feels dense and solid – no rattling parts or flimsy panels here. FiiO has clearly sweated the details: the little things like the uniform RGB-lit FiiO logo (which color-codes the audio format/sample rate) add a dash of techy flair without being gaudy. The rear panel offers an impressive array of connections for a device in this class: USB-C for data input, coaxial and optical digital inputs, plus stereo RCA outputs. Notably, that RCA output can operate in two modes – a fixed line-out or a variable preamp – switchable via the front knob’s menu. It’s a thoughtful inclusion that means the K11 R2R can serve as both your headphone driver and as the heart of a small speaker system. About the only design “miss” I can note is the lack of a remote control. Unlike some competitors (Topping’s DX series or SMSL’s desktop DAC/amps) that include remotes, FiiO makes you get up to adjust volume or switch inputs. In a desktop scenario this is no biggie, but if you plan to use the K11 R2R across the room as a DAC/preamp, keep this in mind.

Features & Technology – R2R on a Budget

The star of the show is, of course, the K11’s R2R DAC architecture. Instead of using an off-the-shelf delta-sigma chip (like the ESS, AKM or Cirrus chips common in this range), FiiO built a discrete 24-bit resistor ladder DAC under the hood. In essence, there are arrays of tiny precision resistors (192 of them, according to FiiO’s spec sheet) doing the work of translating digital bits into analog waves. This fully differential, four-channel design means the K11 R2R is truly balanced internally, which is how it provides that beefy balanced headphone output. It’s impressive engineering at this price – a few years ago, the idea of a true R2R DAC in a $169 device would’ve sounded like fantasy.

FiiO didn’t stop at the DAC itself. They also implemented a resistor-ladder volume control (the NJW1195A chip), which ensures precise channel matching even at low volumes. This approach sidesteps the channel imbalance and noise issues that can plague cheap analog potentiometers – great news for those of us using sensitive earphones at low listening levels. And speaking of volume, you get three gain levels (Low, Mid, High), each with its own volume curve tailored for different headphone sensitivities. In practice, Low gain was perfect for IEMs – I had fine control over quiet levels and heard virtually no hiss even with ultra-sensitive in-ears. High gain, on the other hand, unleashes the unit’s full output for demanding full-size cans.

On paper, the power output is impressive for such a small box. FiiO rates it up to ~1300 mW per channel into 32 Ω via the balanced 4.4mm output. The single-ended 6.35mm jack is more modest (around 460 mW into 32 Ω), but still respectable. In real use, this translated to more than enough juice for every headphone I tried. My 300 Ω Sennheiser HD6XX reached lively listening levels at about the 1 o’clock position on the volume knob (high gain, balanced out), and planar magnetics like the HIFIMAN Sundara had ample headroom too. It’s safe to say the K11 R2R can drive up to ~300 Ω headphones without breaking a sweat.

Beyond raw power, the K11 R2R is brimming with features. It supports up to 24-bit/384 kHz PCM and DSD256 audio, ensuring hi-res formats are fully handled. A dedicated USB interface + FPGA digital stage feeds the DAC for precise timing. There’s even an OS/NOS mode toggle. Hardcore audiophiles will appreciate that you can switch between Oversampling (OS) and Non-Oversampling (NOS) modes – I’ll touch on what that means in the listening section. Rounding out the package, the unit provides all the digital inputs you’d need: USB for your PC or phone, plus coaxial and optical for hooking up other sources like a console or CD transport. It’s powered via an included 12V adapter. FiiO paid attention to power supply design too, using low-noise regulators and shielding to keep the output clean. The result is a silent background (115 dB SNR spec) – in my testing I heard no hum or noise, even with sensitive gear. All these specs and features would be moot if the K11 R2R didn’t perform where it counts: the sound. So let’s dive into that next.

Sound Performance (Headphone Listening)

I’ve spent the past few weeks pairing the K11 R2R with a variety of headphones and earphones to get a complete picture of its sonic character. My testing spanned from easy-to-drive IEMs (in-ear monitors) to planar magnetics and on up to high-impedance dynamic headphones like the 300 Ω Sennheiser HD600. I also pitted the K11 against a couple of other DAC/amps on my desk (including a Topping DX3 Pro and an older Schiit Magni/Modi stack) to gauge how it holds up.

General Sound Signature: Right off the bat, the K11 R2R presents a balanced, slightly warm tonality. By “balanced,” I mean it doesn’t drastically emphasize any part of the frequency range – there’s solid bass presence, clear mids, and clean treble – but unlike many delta-sigma based DAC/amps that strive for clinical neutrality, the K11’s sound has a gentle warmth and smoothness to it. It’s as if a tiny pinch of analog seasoning was added to the mix. This aligns with the common wisdom around R2R DACs: they can exhibit a more organic or rounded sound compared to the ultra-flat neutrality of typical sigma-delta designs. In practice, the difference isn’t night-and-day (modern DACs are all quite good), but it’s noticeable over long listening sessions. For example, cymbals on well-recorded jazz tracks had a slightly smoother decay, and female vocals carried a bit more body through the K11 R2R than through my Topping DX3 Pro (which uses a Sabre delta-sigma DAC).

Crucially, this warmth does not come at the expense of detail. The K11 R2R is plenty resolving. On acoustic recordings, micro-details like the faint intake of breath before a vocal line or the subtle texture of a bow on strings were all present and accounted for. If you’re coming from basic motherboard audio or a budget dongle DAC, you’ll likely be taken aback by how much clearer and more layered your music sounds with the K11 – it pulls out nuance like a champ. Yet it never crosses into overly analytical or sterile territory. Over extended listening, I found the K11 R2R fatigue-free – a big plus for those who like to marathon entire albums. Treble is tuned on the forgiving side: it’s airy enough to convey excitement and “sparkle” in the music, but it never turned harsh or sibilant, even with brighter headphones.

Dynamics and Soundstage: One aspect that surprised me was the expansive soundstage – it’s wider and deeper than expected at this price, giving music a more open, out-of-head presentation. Imaging is a touch less pinpoint-precise than on some pricier setups (the K11 favors a more enveloping feel over laser-focused placement), but I found this trade-off worth it for an immersive listen. The K11 R2R also packs ample punch: bass hits with solid impact and the unit never felt strained on big dynamic swings. Fast transients may be just a hair softened compared to the most analytical DAC/amps, but that gentle smoothness actually makes poor recordings more enjoyable.

The K11 R2R also lets you choose between Oversampling (OS) and Non-Oversampling (NOS) modes, effectively offering two sonic flavors. In OS mode it behaves like a conventional DAC with a touch more energy and punch, while NOS mode yields a slightly softer, more relaxed presentation (some might say more “analog”). I found OS mode best for music that thrives on impact (rock, EDM), whereas NOS was wonderful for mellow genres or taming bright recordings. The ability to switch between these two distinct presentations is a rare and very welcome feature at this price – it’s like having a pair of subtly different DACs in one unit.

Line-Out & Preamp Functionality

Although the K11 R2R is clearly marketed as a DAC/headphone amp, it moonlights as a capable DAC/preamp for other gear. On its rear, those RCA outputs can be toggled between “Line Out” (fixed ~2.7 V output) or “Pre Out” (variable output controlled by the volume knob). I tested the K11 R2R as a DAC feeding a separate power amplifier and also directly driving a pair of powered desktop speakers (IK Multimedia iLoud Micro monitors on my desk, and later my living room Klipsch R-15PM).

In both cases, the K11 performed like a high-quality source. As a pure DAC feeding my more powerful desktop amp, it passed along the same core sound signature I heard via the headphone output: a slightly sweet treble, solid detail retrieval, and that notably spacious soundstage. In fact, inserting the K11 R2R into my speaker hi-fi chain (feeding a tube amp and floorstanding speakers) was illuminating – I could detect that subtle “ladder DAC” difference versus my usual delta-sigma DAC. The presentation with the K11 was just a tad more relaxed on top, which actually complemented the analytical nature of my tube amp nicely. It proved that the K11’s R2R charm isn’t limited to headphones; it can flavor a full speaker system in a pleasant way too.

Using the K11 R2R as a preamp directly into powered monitors was equally satisfying. The volume control offered fine gradation, and I didn’t perceive any added noise or channel imbalance even at low volumes. My powered speakers are fairly revealing, and the background was as silent as one could hope for (no hiss at idle). The only minor caveat in preamp mode is the lack of a remote – when I was across the room, adjusting volume meant walking over to turn the knob. So if you intend to use it in a living room setup, keep that in mind. Sonically, however, I have no complaints. The K11 R2R’s DAC performance is easily on par with dedicated DACs in the sub-$300 range that I’ve tried. Only those who need balanced XLR outputs would have to look elsewhere (the K11’s line-out is RCA only).

In summary, the K11 R2R’s line-out is not an afterthought. FiiO has made sure this device can serve as the digital hub of a system, not just a headphone toy. You can start with it on your desk for personal listening, and later – if you upgrade to a bigger amplifier or new powered speakers – the K11 R2R can slide right into the role of DAC or preamp. That kind of long-term flexibility adds significantly to its value proposition.

Comparisons – How the K11 R2R Stacks Up

The affordable DAC/Amp market is crowded, and any new entrant inevitably faces stiff competition from established players like Topping, SMSL, and Schiit, among others. After spending time with the K11 R2R, I feel FiiO has carved a nice niche here – but let’s break down the comparisons in terms of sound, build, usability, and features:

• Topping DX3 Pro+ and SMSL DAC/Amps: These competitors in the ~$150–$200 range prioritize neutrality and top-notch measurements, often adding conveniences like Bluetooth or remote controls. For example, the Topping DX3 Pro+ (about $199) sounds extremely clean and transparent, and the SMSL C200 similarly delivers crisp, uncolored audio. By comparison, the K11 R2R offers a slightly more musical presentation – a hint of warmth and a broader soundstage – though it lacks wireless features and any remote. Both Topping and SMSL units are solidly built; the DX3 is a slimmer box with a bright display, while the K11 feels heftier with its aluminum build and unique R2R internals. Notably, the K11’s balanced output gave it an edge driving high-impedance headphones, providing a bit more punch and headroom than the DX3 Pro+ could muster. If absolute neutrality and convenience are your top priorities, a Topping or SMSL might fit the bill, but for a more engaging listen and sheer output capability, the K11 R2R holds a clear advantage.

• Schiit Stack (Modi & Magni): Schiit’s popular budget DAC/amp stack (around $200 for Modi DAC + Magni amp) is a formidable rival in performance, and the Magni in particular offers plenty of power. However, the K11 R2R’s DAC section holds its own even against Schiit’s designs – and it brings the R2R flavor to the table at a lower cost than Schiit’s own Multibit DAC (Modi Multibit, $300). In practical listening, both the Schiit stack and the K11 R2R deliver a similarly enjoyable, slightly warm sound signature. The Schiit stack might provide a tad more headroom on the hardest-to-drive headphones, but in normal use I never felt the K11 lacked power. Where the K11 R2R pulls ahead is convenience: it’s a single unit with a display, multiple digital inputs, and balanced output, versus Schiit’s two-box setup with purely analog controls. If you’re intrigued by multibit/R2R technology on a tight budget, the K11 R2R gives you that experience in one neat package – something you’d otherwise need to assemble from separate Schiit components.

In summary, FiiO K11 R2R stands out by offering something genuinely different in the sea of look-alike DAC/amps. It may not outright beat every competitor on every metric – a Topping might measure better, a Schiit amp might be a smidge more robust, an SMSL might have Bluetooth – but the holistic package here is extremely compelling. The sound is on par with the best in class, with a twist of R2R flavor that others don’t have. And the build/features hit a sweet spot: you get almost every input/output you’d need, in a compact, well-built unit.

Conclusion

As I wrap up, I must say FiiO has pulled off something impressive with the K11 R2R. A few years ago, an “affordable R2R DAC” would have sounded like an oxymoron – yet here we are, and it holds its own on sound while pushing technical boundaries in its price class.

So is the R2R architecture genuinely impactful, or just marketing fluff? In my experience, it’s more than a buzzword. The K11 R2R brings subtle sonic benefits – a touch of warmth, an expansive soundstage, and a fatigue-free smoothness in the treble. None of these are night-and-day transformations (a well-implemented delta-sigma DAC in the same class can also sound excellent), but they cumulatively make the K11 R2R a joy to listen to. Crucially, it’s a very competent DAC/Amp in its own right – the R2R design is icing on a well-baked cake, not a disguise for mediocrity.

In day-to-day use as a headphone DAC/amp, the K11 R2R absolutely excels. It easily powers everything from sensitive in-ear monitors to high-impedance classics like the HD600, delivering clean, robust output. Its ability to double as a preamp for powered speakers or to feed a separate amplifier means the K11 can be the hub of not just your headphone setup but your entire audio system.

On a personal note, what struck me most was how often I found myself simply enjoying the music with the K11 R2R. It’s easy to get lost in analytical listening, but this little DAC/amp kept me grounded in the pleasure of the songs. FiiO also deserves credit for not skimping on the basics: they didn’t sacrifice power, build quality, or features just to slap “R2R” on the spec sheet. Instead, they delivered an all-around capable unit that also happens to have a novel DAC design.

Now, the K11 R2R isn’t going to be everyone’s cup of tea. If you demand clinical neutrality and top-of-the-charts measurements, you might lean toward a traditional delta-sigma model (even FiiO’s own standard K11 or a Topping DX3 Pro) which also cost a bit less. Likewise, if you absolutely need extras like Bluetooth streaming or a remote control, you won’t find those here. It’s important to match your purchase to your priorities.

All that said, in my view the FiiO K11 R2R sets a new benchmark for what’s possible under $200. It strikes a near-perfect balance of performance, features, and that little pinch of “magic” that makes listening fun. Whether you’re a newcomer to hi-fi or a seasoned audiophile wanting a secondary setup (or just curious about R2R sound), the K11 R2R is easy to recommend. FiiO swung for the fences, and I’d say they knocked it out of the park – welcome to the era of the budget R2R DAC, and it sounds pretty darn good.
